Fig. 11AF5E - 11AF5B
Schuifafsluiter PN16
- Binnenliggende spindel, niet stijgend handwiel
- Huis van nodulair gietijzer, epoxy gecoat 250um
- Schuif in gietijzer EPDM*** of NBR bekleed
- *** EPDM drinkwater WRAS goedgekeurd
- Aansluiting Flenzen PN16 volgens ISO 7005-2.
- Bouwlengte F5 / EN 558 series 15.
- Maximale druk 16 bar
- Maximale temperatuur 70°C
- Ontwerp volgens DIN3352
- Twee zijdig afdichtend
- Hydraulische tests volgens EN 12266-1, class A.
- gecertificeerd EN1074-2
- Met handwiel

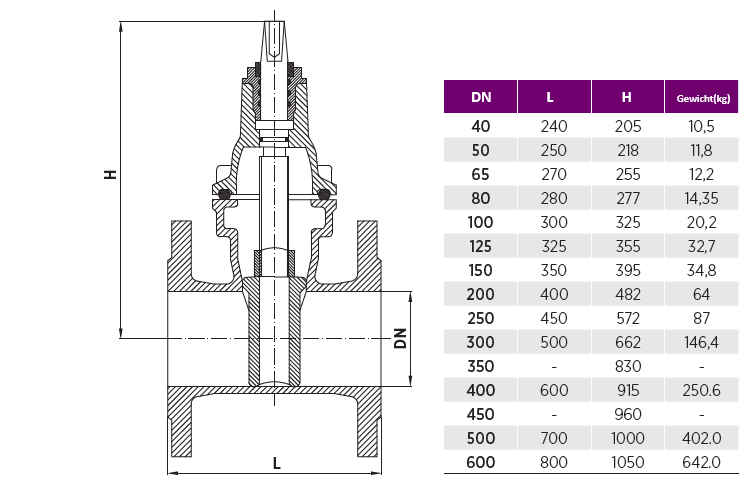

- Art. 11A F5 - 11A F5 B
