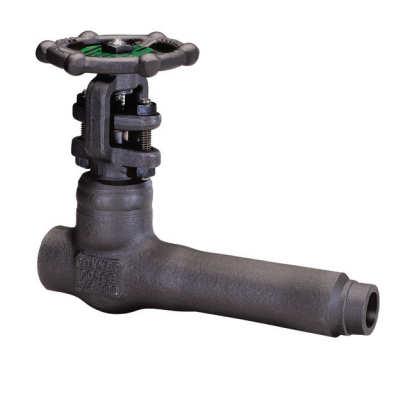

Gate Valves Extended body SW-NPT-BW

Overzicht Gate Valves Extended body

  • Design Construction : API 602
  • Testing according to API 598 Marking MSS SP25
  • Integral extended body
  • Outside Screw and Yoke (OS&Y)
  • Self aligning packing gland in two parts
  • Integral backseat
  • Socket Weld Ends according to ANSI B16.11
  • Screwed Ends according to ANSI B1.20.1
  • Butt Welding Ends according to ANSI B16.25
  • End type on extension side: Valvo-let, Integral reinforced, Socket weld, Beveled for welding, Thredolet Ratings: According to ANSI B16.34
  • Classes: 1500 lbs According to API 602
  • Class 800 lbs Body-Bonnet joint: welded, screwed and seal welded Bolted with spiral-wound gasket retained type or oval ring joint gasket
  • Port opening: Full or Reduced
  • Bore Size 1/2" to 2"
